Moderation of the conference areas
Project Formycon AG

Formycon AG is a leading biotechnology company based in Germany that specializes in the development of high-quality biosimilars – biopharmaceutical follow-on products –.In 2023, Comperi took over the modernization of the conference areas. The focus was on the Watzmann room, which was equipped with state-of-the-art media technology for hybrid meetings, video conferences and presentations. The aim was to create a high-performance, future-proof conference system with seamless integration into the existing IT infrastructure - easy to use for all users and optimally tailored to the requirements of a modern working environment.

Customer: Formycon AG

Industry: Biotechnology

Implementation: 2023

Technical equipment

Display & projection technology

- 2x 65" Samsung QM65R UHD displays left and right upright next to screen with bright Epson EB-L730U laser projector- optimal viewing conditions for presentations and video conferences



 Video conferencing system

- Logitech Tap System with Lenovo ThinkSmart Core as control

- Huddly L1 camera small but powerful and with intelligent camera automation



Audio technology

- Biamp Devio SCX 800 DSP for audio system

- 3 small ceiling microphones (Biamp Parlé TCM-XA)

- 6 Desono C-IC6 ceiling loudspeakers

- super speech intelligibility and sound reproduction in the room

- Microphone automatically recognizes where a person is speaking from and dynamically adjusts its recording range accordingly

- SCX 800 DSP can suppress noise, eliminate echoes and adjust the audio signal in real time



Signal management

- Lightware UCX-2x2-H30 matrix central control unit

- Flexible distribution of HDMI, USB and audio signals, external laptops or media sources possible via HDMI/USB-C



Network & control

- AV technology via LAN connections, PoE supply for cameras and microphones





Special features



Flexible connection options

HDMI & USB C port easy connection of external devices without configuration effort



Accountable AV-over-IP structure

All audio connections via AVB (Audio Video Bridging) for maximum stability



User-friendliness

High technical equipment but simple operation one central touch panel as control

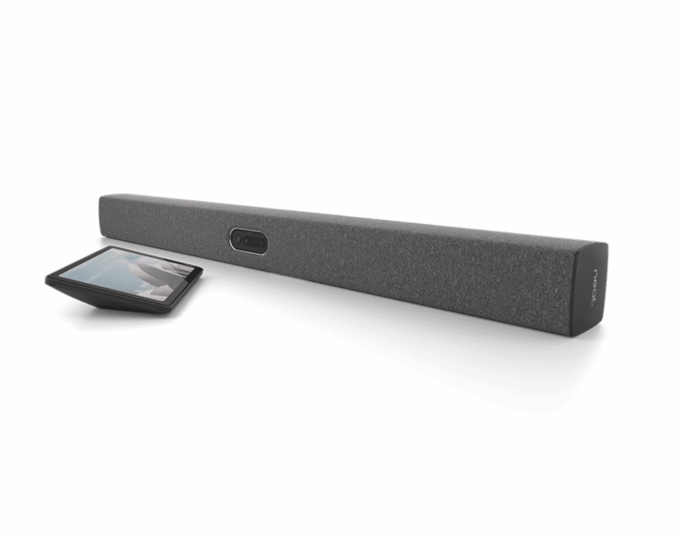

Project description 4 rooms with Neat Bar Pro + Neat Pad

Video conferencing solution: All-in-one solution with MicrosoI Teams

Control: Neat Pad via LAN/PoE on table

Display: Epson EB-L730U laser projector (via HDMI) on STUMPFL BWV-AC280158 FullWhite



Special feature:

Compact, easy-to-use solution with elegant integration for small to medium-sized conference rooms

HDMI sharing enables presentations even without video conferencing

 - Project description 4 rooms with Neat Bar Pro + Neat Pad

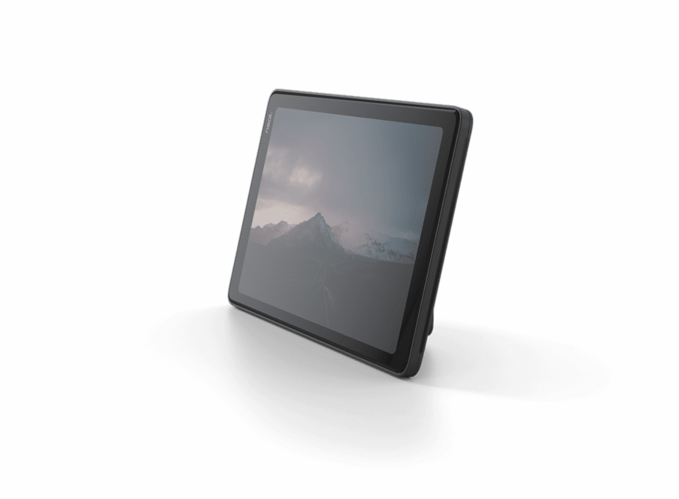

Project description 3 rooms with Neat Board + Neat Pad

Neat Board: (touchscreen + camera + loudspeaker in one device)

Control: Neat Pad (LAN/PoE, on table)

Usage: For spontaneous video meetings, whiteboarding & wireless presentations



Special feature:

All-in-one solution for small mee@ngroups or think tanks

Intuitive whiteboarding & touch operation directly on the display

 - Project description 3 rooms with Neat Board + Neat Pad
The modernization of Formycon AG's conference areas enables efficient collaboration thanks to modern technology, simple operation and seamless IT integration.
