Project SSV Jahn Regensburg

• Press conference room equipped with 98“ 4K Professional Display, 2-way full range Community Veris 28B wall speakers, Origin Acoustics P60 in-ceiling speakers and a mobile audio control room with digital Shure QLX-D® wireless microphones in a 19“ rack on wheels.
• Cabin with 86“ 4K Professional Display with digital signage software, wall connection panel with USB, HDMI, Bluetooth interface, Origin Acoustics P60 in-ceiling speakers and Community Veris subwoofer.
• Regeneration room and wellness area with 55“ 4K Smart TV, ceiling mount and Sennheiser wireless headphones.
• Fitness area with USB, HDMI and Bluetooth wall connection panel, Origin Acoustics P60 in-ceiling speakers and Community Veris subwoofers.
• Tea area with 65“ 4K Smart TV and Origin Acoustics P60 in-ceiling speakers.

• Treatment room for the Jahn professionals with Origin Acoustics P60 in-ceiling speakers and Crestron TSW-760 touch panel for controlling the audio and KNX building technology
.
• Trainer conference room with 86“ 4K Edge LED Professional Display, Origin Acoustics P60 ceiling speakers and Crestron TSW-760 control units and signal feed adapters with USB, HDMI and Bluetooth interfaces.
• Meeting room with 75“ 4K Professional Display, ceiling speakers, wall connection panel with USB, HDMI and Bluetooth interface, Crestron TSW-760 control unit and wireless headphones.
• Central technology with Crestron CP3N media control and Eib-IP gateway for building technology, Bluesound multiroom music system and Q-SYS™ Core 110F processor 4-channel stereo.
• KNX/EIB network for the entire building technology such as lighting, dimming, air conditioning, security technology, etc.
• Crestron TSW-760 touch panels with customized GUI programming in the corporate design of SSV Jahn Regensburg in all rooms.

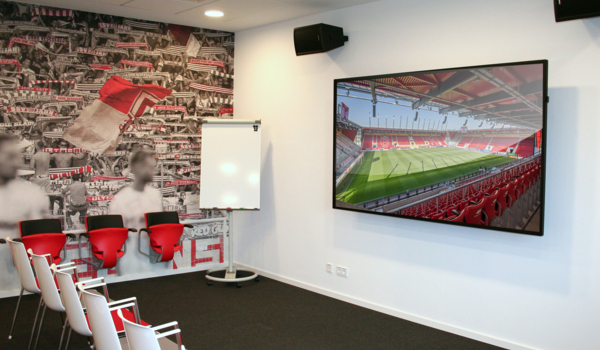

In order to ensure a perfect audiovisual image and sound experience during press conferences and video analyses, the latter was equipped with a brilliant 98“ 4K Professional Display, 2-way full-range wall speakers and six discreetly integrated ceiling speakers.

An audio control room specially designed for SSV Jahn enables the mobile use of several state-of-the-art table and wireless microphones. The audio control unit, which is integrated into a 19“ rack on wheels, can be used both in the press conference room and directly on the sidelines. There, a horn-loaded, weatherproof 2-way loudspeaker provides sound for the Regensburg football professionals, press representatives and countless fans.

For the best visual preparation for training, an 86“ 4K Professional Display was integrated in the players' booth along with convenient digital signage software for internal communication and a wall connection panel with USB, HDMI and Bluetooth interfaces as well as an intuitively operated Crestron TSW-760 touch control panel. The large-screen experience is acoustically accompanied by 10 Origin Acoustics in-ceiling loudspeakers and a powerful Community Veris subwoofer.

In order to prevent boredom in the regeneration area, a 55“ 4k display with ceiling mount and wireless headphones was also installed here. The same applies to the tea room, which is equipped with a 65“ 4K Smart TV and ceiling speakers. Discreetly integrated built-in loudspeakers and a Crestron TSW-760 touch display ensure a pleasant stay in the treatment room, which can be used to control not only the music but also the building technology such as lighting, dimming, air conditioning and security technology.

In the trainer's room with adjoining head trainer's room, particular attention was paid to maximum flexibility and simplicity in signal management. Thanks to the six integrated table connection panels, each participant has access to Bluetooth, HDMI and RJ45 network connections for simple content feed into the 86“ 4K Professional Display and the discreetly installed audio system.

Furthermore, all rooms were equipped with Crestron TSW-760 touch panels with GUI user interfaces specially designed in the SSV Jahn design. These can be used to operate the AV technology as well as the lighting technology, dimming and air conditioning intuitively and self-explanatory.

In the central technology, a Crestron CP3N control system with gateway for KNX building technology, a Bluesound Multiroom audio system and a Q-SYS™ Core 110F processor ensure fast and stable data transmission on all channels and in all rooms.
